  *AIRCRAFT  TYRES*           Call/txt 0407 252505  24/7

AIRCRAFT TYRES delivered to your door, AUSTRALIA wide.  Now also NZ      Page update  11/7/24

ALL PRICES shown include GST            Your tyre not listed here?   Call us. We can get it!  (mostly)

Delivery:  $20.00 per order, to anywhere* *up to 22kg*  via standard Australia Post.  *NSW, ACT and VIC, please allow 2 - 5 days.  Other states or territories, 4 -12 days.*   Express Post available.

***************************************************************************************

 We ship to NEW ZEALAND

To calculate your buy price in AUD simply deduct one eleventh from our advertised price (removes aussie GST).

Freight to any NZ address.  As a rough guide, it tapers from about $20.00 per kg for a 2kg parcel,  $14.00 kg for 5kg, $11.00 kg for 10kg, to $9.50 kg for the 20 kg max weight.

Delivery time is usually between 8 and 16 days.

**************************************************************************************

ORDERS or ENQUIRIES:  sales@waggabiketyres.com   or call/txt Fred on  0407 252505 any time.  (61+407 252505)

CONDOR  AERO-CLASSIC  MITAS  GOODYEAR  STA  TRELLEBORG  CARLISLE

 TUNDRA section

CARLISLE TURF-GLIDE 8.00-6 T/L  $169.00    **now tubeless**  tube fit is OK too

Popular mini-tundra option for up to 600kg AUW.

 Outside diameter is about 16.25 inches, width 7.25.  Tread depth is 5mm.  Weight is 3.5kg.

Foxbat tundra tyre.  Airborne Edge Tundra.

APPLICABLE TUBES:

Top tube industrial TR13 $40.00.   Suits Foxbat / Vixxen.

Aero Classic 700/800-6 TR20 GL7020 $215.00.

Aero Classic 700/800-6 TR87/70 GL-70877B $180.00.  Best tube for offset drilled Savannah wheel.

************************************************************************************************************************************

STA AIR TRAC 8.00-6 6pr. P/N 30609  $598.00  Tube type.  Rated for 930kg / 104 knots.  TSO C62b.

Dia. circa 19.5 inches.  Width circa 7.9 inches.  4.8kg.  Ideal for your Pawnee, Cub, Cessna 180, etc.

Applicable tubes:

Aero Classic 700/800-6 TR20 GL-7020B $215.00.

Aero Classic 700/800-6 TR87/70 GL-70877B $180.00.  Best tube for offset drilled Savannah wheel.

************************************************************************************************************************************

DELIVERY:  Please allow 2-5 business days for a NSW, ACT or VIC address or 4-10 days for other states or territories.

**************************************************************************************************************

AERO CLASSIC  21x8.00x6 T/L TUNDRA P/N 30101  $340.00  An 8.00x6 but with a sporty 21 inch outside diameter.

TUBELESS.  4 ply rating with full 6mm tread depth.  Max load 363kg at 25psi.  Maximum rolling speed 61 knots.  Tyre weight 4.8kg.  Width circa 7.5 inches.

APPLICABLE TUBES:

Aero Classic 700/800-6 TR20 GL-7020B $215.00.

Aero Classic 700/800-6 TR87/70 GL-70877B $180.00.  Best tube for offset drilled Savannah wheel.

 *************************************************************************

Aero Classic Smooth Tundra 22" 850x6 4pr. P/N 31328  $595.00  Tube type. Only 4.2kg!

Max speed 104kt.  Max load 1600LB/725KG.  TSO-C62e  Skid depth 0.16"/4.06mm

PS  Your band brake Lightwing works best with STA Air Trac 600-6.  Neither of the above Tundras will fit.

Applicable tube:  Aero Classic 850-6 TR20 GL-8520N.  Weight 1.4kg. $295.00

* Tubeless version  *  Perfect for your Beringer wheels.  Heavier case than tube type.

6.1kg. **$595.00 **  P/N 31338

*****************************************************************

STA SUPER HAWK 850-6 6pr. P/N 32910 Tube type. $680.00    120mph/104kt  6.9kg  2275 lb/1032kg

Premium belted construction.

Applicable tube: Aero Classic 850-6 TR20  GL-8520N  1.4kg.  $295.00

**************************************************************************************************************

TUBE  850x6  Aviation grade.  $295.00  GL-8520N  TR20 straight valve stem with yellow hex cap.

Weight 1.4kg Natural rubber.   Note: 850x6 with TR87/70 bent stem is not produced.

****************************************************************************************************

Goodyear 850-6 (22inch dia.) 6pr. T/L Aircraft Rib 856T61-1   $730.00

120mph / 104 knots  Rated for 2275 lb / 1032kg at 30psi.  Ideal rim width is 6 inches.

Applicable tube:  Aero Classic 850-6 TR20 GL-8520N  1.4kg  $295.00

************************************************************************************************

Goodyear 26x10.50-6 T/L smooth P/N 260K61-1   $1690.00  Goodyear Blimp tyre.

Made for the first Goodyear blimp about ninety years back.  Became the original tundra tyre and remains a popular option.

 Known as having a better tread life than most other tundra tyres.

120mph   6 ply rating   10.3 kg  Rated load 2765 lb at 25 psi.

Applicable tube:  Aero Classic 850-6 TR20 GL-8520N.  1.4kg.  $295.00

*******************************************************************************************************

13x5.00-6 / 140-6 section



JABIRU TYRES

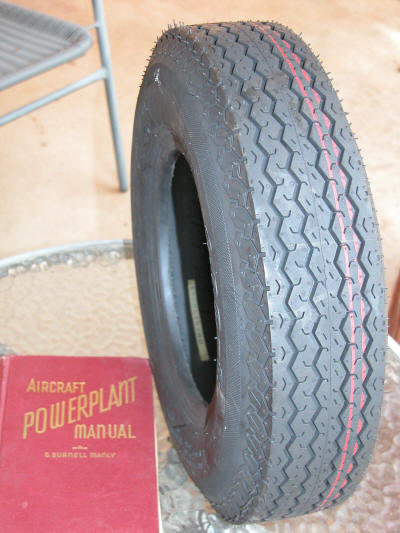

TRELLEBORG TRUCK T-510 140-6 10PLY

Requires tube.   Replaces 13x5.00-6  $149.00  Longer tyre life with less flats!

        Weight is 2.95kg.    Made in Sri Lanka.

Deep tread.   We run them on a J160 doing training work, mostly on bitumen.  Double tread life. Less punctures.

JABIRU  Fits, mains and nose, J160C J160D J170C J170D J230C J230D plus J160 J170 J230.  Spats OK.  Also fits LSA 55 3J if fitted with the popular "Medium B" undercarriage option.

Applicable tubes:

Industrial 13x500-6 TR13.  $25.00

Industrial 13x500-6 TR87.  $25.00

Aero Classic 13x500-6 TR87 GL-4087.  $97.00



**************************************************************************************************************

Aero Classic "Leakguard" aviation grade tube GL-4087.  Size 13x500-6, TR87 stem.  $95.00

**************************************************************************************************************

TRELLEBORG  T510 13x5.00-6 6pr.  $ 89.00  The factory standard tyre for Jabby nose or mains.

Specified OE tyre in Jabiru drawings for many models.   1.7kg.   A light duty industrial tyre with modest wear life.

Applicable tubes:

Industrial 13x500-6 TR13.  $25.00

Industrial 13x500-6 TR87.  $25.00

Aero Classic 13x500-6 TR87 GL-4087.  $97.00

************************************************************************     **************************************

260/85  300-4  Journey P6075  4pr.  $59.00

A good sturdy tyre for your small cabin Jabiru nose wheel.   Dia. about 250mm.  Tread width about 67mm.  Bulge width about 77mm.

Applicable Tubes:

Industrial 250/300-4 TR13.  $22.00

Industrial 250/300-4 TR87   S22.00

Aero Classic 260/85 300-4 TR87  DTR20-201  $50.00

**************************************************************************************************************

4.00-4 section

MITAS AERO B1 12x4 (4.00-4) 28J tube type.  $99.00

Carries euro "E" mark certification but no stated ply rating.  A good replacement for your Cheng Shin C179.

 Outside diameter about 312mm.  Width is about 100mm.  1.4 kg.

Applicable tubes:

Industrial 410/350-4 TR13.  $22.00

 Industrial 410/350-4 TR87.  $22.00

AERO CLASSIC 350/400-4 TR87  DTR20-206.  $60.00

******************************************************************************************************************

The solution for your 4" Jabiru main wheels.

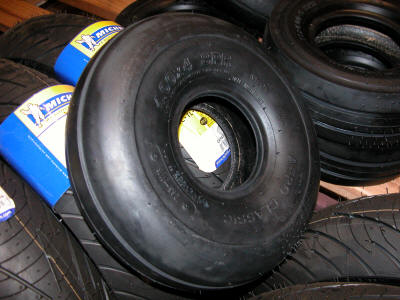

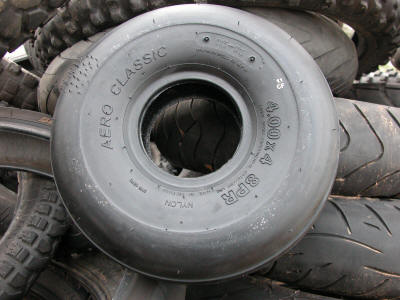

AERO CLASSIC   4.00-4 T/L 8pr.  DTR1270  $158.00  Tri-rib design for longer tread life.

Rated for 62MPH carrying 800lbs. An excellent tyre for your J120 or Starlet. Diameter about 292mm/11.5". 1.5kg.

Width is about 100mm.

Applicable tubes:

Industrial 410/350-4 TR13.  $22.00

Industrial 410/350-4 TR87.  $22.00

Aero Classic 350/400-4 TR87 DTR20-206.  $60.00

***************************************************************************************************************

***************************************************************************************************************

11x4.00-5 / LAMB section

AERO CLASSIC   11x4.00-5 T/L 8pr. DTR5582 $165.00  Rated for 650 lbs and 100 MPH.

Super rugged for main gear or LAMB nose tyre on Van's RV.   Fit with tube or tubeless.  1.6kg.

Applicable tube:  Aero Classic 11x4.00-5 TR87 DTR20-400  $65.00.

**************************************************************************************************************

**************************************************************************************************************

15x600-6 section

TRELLEBORG  T-510 15x6.00-6 6pr.   $115.00  Requires tube.   Weight is about 2.3kg.

Not recommended for circuit training on sealed strips.  Light duty industrial tyre.

Tyre stands about 13.25 inches high by about 6 inches section width.

Applicable tubes:

Industrial 15x600-6 TR13.  $27.00

Industrial 15x600-6 TR87.  $27.00

************************************************************************************************************************

WANDA P508 15x6.00-6 T/L 10pr.   $98.00   Economy tyre with extra puncture resistance!

Features a tough, puncture resistant case.  Not recommended for circuit training on sealed strips.  Medium / heavy duty industrial tyre.

Weight  2.5kg.

Applicable tubes:

Industrial 15x600-6 TR13.  $27.00

Industrial 15x600-6 TR87.  $27.00



***************************************************************************************************************

STA AIR TRAC 15x6.00-6 6pr. tube type. P/N 30631.  $239.00  Rated 1,950lb and 120MPH

Applicable tubes:

Aero Classic 15x600-6 TR20 GL-1520B  $155.00

Aero Classic 15x600-6 TR87/70 GL-1587B  $155.00

Industrial 15x600-6 TR13  $27.00  Option for LSA and max 600kg applications only.

Industrial 15x600-6 TR87  $27.00  Option for LSA and max 600kg applications only.

*************************************************************************************************************************

CONDOR 15x6.00-6 6pr. P/N 072-449-0  $315.00  Rated for 1,950lb/884kg at 120 mph/104kt.

Diameter is about 13.8 inches.  3.5kg.  TSO C62e  A great value and rugged General Aviation tyre.

Applicable tubes:

Aero Classic 15x600-6 TR20 GL-1520B  $155.00

Aero Classic 15x600-6 TR87/70 GL-1587B  $155.00

Industrial 15x600-6 TR13  $27.00   Option for LSA and max 600kg applications only.

Industrial 15x600-6 TR87  $27.00   Option for LSA and max600kg applications only.

**************************************************************************************

**************************************************************************************

CHIPMUNK  Tyre   AUSTER  Tyre

Aero Classic 420x150, 6.00x6.5 4pr.   $520.00

Tube to suit:  420x150, 6.00x6.5, with TR67 stem.  $245.00  GL-6067

 *********************************************************************************

DH-82A Tiger Moth Tyre

Aero Classic Vintage 7.00x7.5 6pr.   31316  $670.00

Tube to suit:  Aero Classic 7.00x7.5 (500x180) TR4  (C-AV-7.5-0700)   $180.00



*********************************************************************************

Tyres for Eight inch diameter wheels.

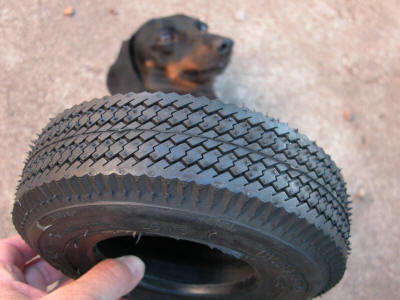

 WANDA P819  4.80-8 (4.00-8) T/L 8pr. RUGGED!!  Hi speed/High load.    $89.00

Suitable for LAMBADA mains, replacing the OE. Trelleborg.  TUBES are $22.00ea. with the choice of TR13 or TR87 stem.

For 8 inch diameter rim.  Tyre diameter is 15 inches.  Tyre case is 4 inches in width.  Tread section is 3 inches wide.

****************************************************************************************************************

MITAS / SAVA B13  Deep tread.  Curved crown.  Sidewall flexibility.  Tube type.

        400-8 (480-8) $79.00          350-8  $69.00 (x-air with spats)         Tubes $22.00 - TR13 or TR87

****************************************************************************************************************

WANDA P508 18x850-8 6pr. T/L  $139.00   *Now in stock*

We were asked to suggest tyres to suit a Skyfox CA-22.  We came up with these puppies and think they look just right!

Medium duty industrial tyres.  A great choice for your 8 inch diameter wheels.

Tubes are $40.00ea.  TR87 or TR13 valve stems available.

********************************************************************************************************************

TUNDRA Fun!! ... if you happen to have 8 inch diameter wheels about 8 inches wide.  4.5kg.

WANDA P325  21x12.00-8 T/L 2pr.  $189.00  Suit slow flying, RAAus weight class, home built.

*Currently nil stock.  Awaiting delivery from manufacturer.*

**************************************************************************************************

**************************************************************************************************

SMALL DIAMETER / TAILWHEEL TYRES

Right click on any photo to enlarge.

For THREE INCH dia. wheel.  210-65 / 250-3  4pr. DTR1430  Max load 280lb/1.3kg @ 50psi.  $68.00

Tube 210-65 / 250-3 with TR87 stem.  $39.00ea.  P/N  DTR20-600

*********************************************************************************************

 WANDA P606  280/250-4 T/L 4pr. TAILWHEEL TYRE  $39.00    Max Load 296lb/134kg at 50 psi.   Medium duty industrial tyre.

Diameter circa 200mm.    PA18 Cub, Pawnee, Lightwing, etc.

Applicable tubes:

Industrial 280/250-4 with TR13 valve stem.  $20.00

Industrial 280/250-4 with TR87 valve stem.  $20.00

Aero Classic 280/250-4 with TR87 valve stem,  DTR20-100.  $48.00

*********************************************************************************************

TAILWHEEL   Heavy Duty

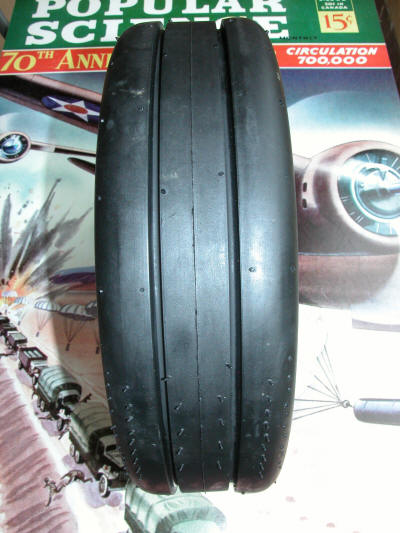

AERO CLASSIC  280/250-4 6pr. 1V1514 Tailwheel tyre. $129.00 Built tough for nasty airstrips or heavily loaded tail gear.

Rated for 475 lbs @ 70psi max. Diameter circa 218mm.  Deep tread gives long life.  Premium!

Applicable tubes:

Industrial with TR13 valve stem.  $20.00

Industrial with TR87 valve stem.  $ 20.00

Aero classic 280/250-4 with TR87 valve stem, DTR20-100.  $48.00

****************************************************************************************************************************

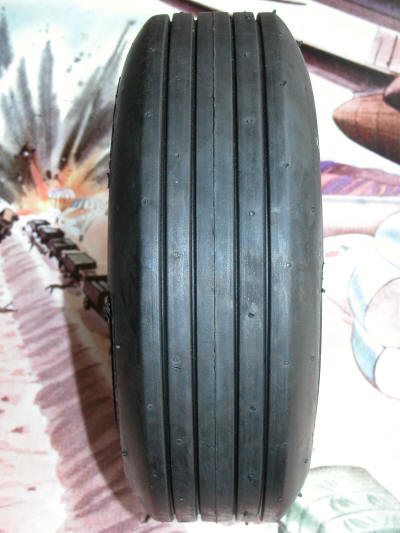

AERO CLASSIC  10x3.50-4 6pr. 1V1651  $145.00  Heavy duty aircraft rib. Tube type. Rated for 555lbs up to 70 psi.

 Ten inches high.  1.1kg.  Tube type.

Diameter 238mm.  Width at widest point 90mm.  Width at tread 65mm.  Tough and long lasting!

Applicable tubes:

Industrial 410/350-4 TR13.  $22.00

Industrial 410/350-4 TR87.  $22.00

Aero Classic 350-4 TR87, DTR20-201.  $50.00

***************************************************************************

5.00-5 section  Also 15x600-5/380x150

STA  AIR TRAC (AERO TRAINER)  5.00-5 6pr. 30602  Tube type  $230.00

P/N 30602   TSO  120MPH  1285LB  Optimised for grass and dirt strips.  Weight 2.0kg.

Applicable tubes:  Aero Classic 500-5 TR67 GL-5067B $165.00

                          Aero Classic 500-5 TR87 GL-5087B  $165.00

********************************************************************************************

STA  AIR HAWK  5.00-5 6ply  30842  $230.00

  120MPH  1,285LB  TSO  Tube type.  Weight 2.1kg.  Tyre height, 13 inches.  Optimised for pavement work.

Applicable tubes: Aero Classic 500-5 TR67 GL-5067B  $165.00

                           Aero Classic 500-5 TR87 GL-5087B  $165.00

*****************************************************************************************

5.00-5 6pr. CONDOR TYRE P/N 072-312-0 120MPH 1,285LB TSO tube type.  $270.00   Tyre height, 13 inches.

Weight 2.7kg.    A rugged work horse.

Applicable tubes:  Aero Classic 500-5 TR67 GL-5067B  $165.00

                           Aero Classic 500-5 TR87 GL-5087B  $165.00

****************************************************************************************************************

AERO CLASSIC  5.00-5 T/L 10pr.  32403  $310.00

A rugged, ten ply, tubeless tyre.  Weight 2.8kg.  Zoom in for detailed view.

Applicable tubes:  Aero Classic 500-5 TR67 GL-5067B  $165.00

                               Aero Classic 500-5 TR87 GL-5087B  $165.00

**************************************************************************************

Goodyear Flight Special II  5.00-5 6pr. 505C61-8  $320.00

120mph/104kt   1285LB/583kg  Tube type tyre

************************************************

15x500-5 /  380x150-5   Oversize for 5 inch diameter wheel.

Goodyear Flight Custom 15x600-5/380-150.  $580.00  Oversize option for 5 inch wheel.  Premium!

Picture shows it next to 500-5.  Static load rating 1600LB/727KG.  Tube type.  120MPH/102KT.  Weight 3.6KG  Approx 365x140mm.

Applicable tubes:

Aero Classic 500-5 TR67 GL-5067B  $165.00

Aero Classic 500-5 TR87 GL-5087B  $165.00

********************************************************************************************************

AERO CLASSIC 380x150-5/380-150  P/N 31313  Oversize option for 5 inch wheel.  $450.00

Picture shows it next to 500-5.  Static rated for 1600lb / 727kg.  Tube type.  120mph / 102 knots.  Only 2.4kg.

Applicable tubes:

Aero Classic 500-5 TR67 GL5067B  $165.00

Aero Classic 500-5 TR87 GL5087B  $165.00

**************************************************************************************************************

5.00-5 TUBE OPTIONS.  These also suit 15x600-5/380x150

Aero Classic TR67  GL5067B Leakguard aviation grade tube.  $165.00  (illustrated above)

Aero Classic TR87  GL5087B Leakguard aviation grade tube.  $165.00

SOME sub 600kg experimental AIRCRAFT use a 13x5.00-6 INDUSTRIAL TUBE with the 5.00-5 tyre.

These are available with TR13 straight tapered rubber or TR87 right angle bend metal stem.  $25.00

*******************************************************************************************************

**************************************************************************************************************

6.00-6 section

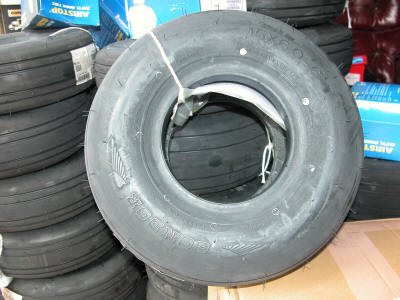

6.00-6 8pr. CONDOR TYRE  P/N 072-317-0  120MPH  2,350LB  TSO  tube type. $299.00

Tyre height is 16.5 inches.  Tread depth is 6mm.  Approx 3.9kg.  A rugged work horse.

*************************************************************************************************************************

TUBE OPTIONS for size 6.00-6   These also suit 17.5x6.25

AERO CLASSIC Leakguard aviation grade tube.

Choose from:

Straight TR20 @ $180.00

Brass TR87 valve stem with 70 degree bend @ $180.00

Brass TR87 valve stem with 90 degree bend @ $180.00



********************************************************************************************************

6.00-6 6pr.  CONDOR TYRE  072-314-0  $299.00  120MPH  1,750LB  TSO  Requires tube, info above.

Tyre height/outside diameter is 16.5 inches.  Tread depth is 6mm.  Approx 3.8kg.  A rugged work horse.

**********************************************************************************************************************

STA AIR TRAC (previously Aero Trainer) 30620  6.00-6 6pr.  Tube type.  $239.00

Rated for 1,750 lb and 120mph.  Skid depth 0.19".  3.0kg  Outer dia. circa 16.6 inches. Fitted width will vary. Typically about 5.5 inches.

Made in USA.  Optimised for grass and dirt strips.    The best tyre for Hughes Lightwing with band brakes.   Jabiru oversize.

**********************************************************************************************************************

STA AIR TRAC  30605  6.00-6 8pr.  Tube type.  $259.00

Rated for 2350 lb and 120mph.  3.0kg.  Higher rated version of 600-6 Aero Trainer P/N 30620 above.

Made in USA. Optimised for grass and dirt strips.

STA  Air Hawk 6.00-6 6pr. 30844  $ 275.00  Tube type.  Static load max 1750 lb / 795 kg.

120MPH/102KT.  Weight 3.5kg. Made in USA.  Optimised for pavement work.

**********************************************************************************************************************

**********************************************************************************************************************

4.00-6 section. Called 14x4 in Europe.



AERO CLASSIC MONSTER 4.00-6 (14x4) 8pr. DTR1285  $189.00  Premium LSA tyre. Fit with tube or tubeless.  This is a hard/stiff tyre.  Rugged!

Rated for 70mph/61kt and 850lb/386kg  High puncture resistance. Long wear life on pavement.

Not suitable for Pipistrel spat.    2.7kg   Bullet proof !   Stiff case means a more harsh ride but it might get you home, if flat.

 Diameter about 338mm.  Width if fitted to a 3 inch wide rim, is about 105mm.

See tube options below next item.

************************************************************************************************************************



AERO CLASSIC 4.00-6 (14x4) 6pr. T/L  DTR1280  $175 .00  Fit with or without tube.

OE. tyre on XL601 or CH650.   Longer life, more puncture resistance than MITAS but still has sidewall flexibility for ride comfort.

1.8kg.  Diameter about 346mm.  Width if fitted to a 3 inch wide rim, is about 105mm.

**************************************************************************

Tube options for size 400-6, 14x4.

AERO CLASSIC "Leakguard" Aviation grade tube GL-4087.  $97.00. Premium tube to fit 400-6, 14x4 and 13x500-6. TR87 valve stem only.

INDUSTRIAL grade tube with TR13 or TR87 stem. $25.00

**************************************************************************

  MITAS (SAVA) 4.00-6  14x4 B11  $95.00    Tube type tyre.  OE fit on Pipistrel, Allegro, etc.

Tread depth 3mm.  Weight 1.2kg.  Rated to carry 300kg at 65kts.  Diameter about 356mm.  No ply rating but like a 4pr.

TUBES with TR13 or TR87 stem are $25.00ea, OR see Aero Classic tube above.

*****************************************************************************************************************************

VALVE STEM TYPES

TR13  9.8mm base dia.
TR87   90 degree
TR20   12.5mm base dia.
TR67
TR87/70   seventy degree bend.  Versatile!


CONTACT US

E-MAIL      sales@waggabiketyres.com

 PHONE:     TXT or call Fred on 0407 252505

BACK UP   Call the shop on 02 69 214981 .





***********************************************************************************************************************************

END



Airborne Edge Tyre.  Corby Starlet Tyre.  Jabiru 10 ply Tyre.  Foxbat Tyre.  Gazelle tyre.  Skyfox tyre.  Thruster tyre.  Drifter tyre.  Lightwing tyre. Tecnam tyre. Light aircraft tyre. Aircraft tyre.

Jabiru tyre. Aircraft tube. Savannah tyre. Brumby aircraft tyre. Magni gyro tyre. Titanium gyro tyre. Cessna tyre. Cessna tyres. Victa Airtourer tyre. Piper Cherokee tyre. Aircraft tyre.

 Aircraft Tyres.  Aircraft tyres Australia. GA aircraft tyre.  Zenith XL601 CH650 tyre.  Zodiac XL601 CH650 tyre.

Vans RV.  Michelin Condor .  DHC-1 tyre.  Auster tyre.
